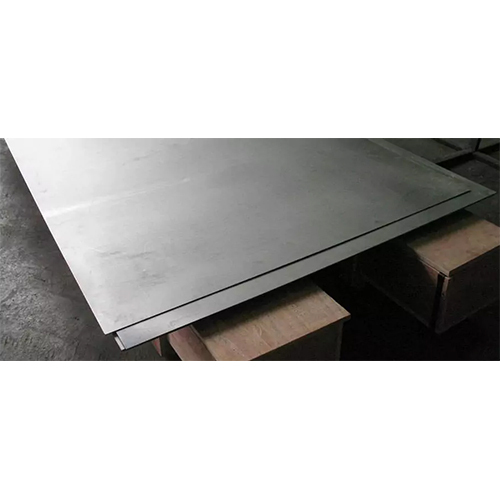

Titanium Grade 2 Plates

Get a Price/Quote

MOQ : 50 Kilograms

Titanium Grade 2 Plates Specification

Grade
Industrial

Usage & Applications
Aerospace, Chemical Processing, Marine, Medical, Power Generation, Desalination Plants, Heat Exchangers

Metal Type
Non-Ferrous

Boiling point
3287C

Melting Point
1665C

Purity(%)
99.2

Product Type
Metal Products

Material
Titanium Grade 2

Shape
Plate / Sheet

Chemical Composition
Titanium (Ti) 99.2% min, Iron (Fe) 0.30% max, Oxygen (O) 0.25% max, Carbon (C) 0.08% max, Nitrogen (N) 0.03% max, Hydrogen (H) 0.015% max

Density
4.51 Gram per cubic centimeter(g/cm3)

Size
Different Available

Weight
As per size and thickness

Dimension (L*W*H)
Custom / Different Available

Color
Different Available

Warranty
1 Year

Titanium Grade 2 Plates Trade Information

Minimum Order Quantity
50 Kilograms

Supply Ability
1 Kilograms Per Week

Delivery Time
1-2 Week

Main Domestic Market
All India

About Titanium Grade 2 Plates

What Are Specification Titanium Grade 2 Plates?

Specification	ASTM B265 / ASME SB265
Length	2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Width	1000mm / 1219mm /1250mm / 1500mm / 2000mm
Thickness	Ranging from 0.3mm to 20mm
Hardness	As per ASME A & NACE MR 175
Finish	Hot rolled plate (HR), Cold rolled sheet (CR)

Equivalent material Of Titanium Grade 2 Plates?

STANDARD	WERKSTOFF NR.	UNS
Titanium Grade 2	3.7035	R50400

Chemical Composition Of Titanium Grade 2 Plates?

Grade	Ti	C	Fe	H	N	O	Al	V
Titanium Gr 2	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	-	-

Mechanical Properties Of Titanium Grade 2 Plates?

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
4.5 g/cm3	1665 C (3030 F)	Psi 49900 , MPa 344	Psi 39900 , MPa 275	20 %

Outstanding Corrosion Resistance

Titanium Grade 2 Plates offer excellent corrosion resistance, making them ideal for use in chemical processing, desalination plants, and marine environments. This resistance is attributed to their high titanium purity and controlled trace elements, ensuring long-term durability and reliability even in aggressive environments.

Customizable Dimensions and Versatile Application

Available in a thickness range from 0.5 mm to 60 mm and customizable in length, width, and shape, Titanium Grade 2 Plates can be tailored to various project requirements. Their adaptability allows them to be used in aerospace, power generation, medical devices, and heat exchangers, among other demanding sectors.

Compliance with International Standards

Manufactured according to ASTM B265 and ASME SB265 specifications, these plates meet strict global quality standards. This compliance guarantees consistent material performance, safety, and suitability for both domestic and export requirements, reinforcing their position as a trusted choice among manufacturers and suppliers.

FAQs of Titanium Grade 2 Plates:

Q: How are Titanium Grade 2 Plates typically manufactured?

A: Titanium Grade 2 Plates are produced by hot rolling or cold rolling processes, followed by surface finishing options such as pickling, sandblasting, or polishing to achieve the desired surface characteristics and quality.

Q: What are the key benefits of using Titanium Grade 2 Plates in industrial applications?

A: These plates provide excellent corrosion resistance, good machinability, impressive mechanical strength, and flexibility in dimensions. Their high purity and durability make them suitable for challenging environments in aerospace, marine, and chemical industries.

Q: Where can Titanium Grade 2 Plates be used most effectively?

A: They are highly effective in sectors like aerospace, power generation, chemical processing, medical equipment, marine applications, desalination plants, and heat exchangers due to their robust physical properties and resistance to corrosion.

Q: What surface finishes are available for Titanium Grade 2 Plates and how do they impact performance?

A: The plates can be supplied with hot rolled, cold rolled, pickled, sandblasted, or polished finishes. Each finish enhances specific attributes such as surface smoothness, appearance, and resistance to particular environmental factors, depending on application requirements.

Q: What is the typical process for ordering customized sizes of Titanium Grade 2 Plates?

A: Customers can specify dimensions such as length, width, and thickness within the 0.5 mm 60 mm range. Products are tailored as per application needs, with support for different shapes and sizes to ensure best-fit solutions for industrial projects.

Q: When should Titanium Grade 2 Plates be preferred over other metal plates?

A: They should be chosen when the project requires high corrosion resistance, biocompatibility, excellent mechanical strength, and low density, especially in critical environments like chemical plants, medical devices, or marine structures.

Q: What warranty and quality assurances come with Titanium Grade 2 Plates?

A: These plates are provided with a one-year warranty and are manufactured to ASTM B265/ASME SB265 standards for guaranteed quality, reliability, and performance across various industrial applications.
