Send InquiryASTM A105 Forged Steel Flanges
MOQ : 50 Kilograms
ASTM A105 Forged Steel Flanges Specification
- Grade
- Multple Grades Available
- Purity
- 80-99%
- Material
- Stainless Steel
- Standard
- ANSI
- Surface
- Galvanized
- Technics
- Hot Rolled
- Size
- Various Sizes Available
ASTM A105 Forged Steel Flanges Trade Information
- Minimum Order Quantity
- 50 Kilograms
- Supply Ability
- 1 Kilograms Per Week
- Delivery Time
- 1-2 Week
- Main Domestic Market
- All India
About ASTM A105 Forged Steel Flanges
ASTM A105 Forged Steel Flanges are designed to meet rigorous industrial requirements, offering excellent durability and reliability in various applications. Manufactured from high-purity stainless steel (80-99%), these flanges exhibit exceptional corrosion resistance and long-lasting performance. They are crafted using hot-rolled techniques, ensuring structural integrity and uniformity. The surface is galvanized for added protection against environmental factors and enhanced aesthetic appeal. Available in various sizes and multiple grades, these forged steel flanges provide versatility to meet a wide range of project specifications. Whether youre looking for superior strength or reliable connectivity, ASTM A105 Forged Steel Flanges are an optimal choice for industries like oil & gas, chemical processing, and power generation. ###
What Are Specification ASTM A105 Forged Steel Flanges?
| ASME B16.5 size range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
Chemical Composition Of ASTM A105 Forged Steel Flanges?
| ELEMENT | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Copper | Nickel | Chromium | Molybdenum | Vanadium |
|---|---|---|---|---|---|---|---|---|---|---|
| COMPOSITION, % | 0.35 max | 0.60-1.05 | 0.035 max | 0.040 max | 0.10-0.35 | 0.40 max (1) | 0.40 max (1) | 0.30 max (1-2) | 0.12 max (1-2) | 0.08 max |
Mechanical Properties Of ASTM A105 Forged Steel Flanges?
Mechanical Properties | Requirements |
|---|---|
Tensile strength,min,psi [MPa] | 70000 [485] |
Yield strength,min,psi [MPa] | 36000 [250] |
Elongation, min, % | 30 |
Reductionofarea,min,% | 30 |
Hardness,HB,max | 187 |
FAQs of ASTM A105 Forged Steel Flanges:
Q: What material is used for ASTM A105 Forged Steel Flanges?
A: These flanges are made from high-purity stainless steel, ranging from 80-99%.Q: What surface finish is applied to these flanges?
A: They are galvanized to enhance corrosion resistance and durability.Q: Are these flanges available in multiple sizes?
A: Yes, ASTM A105 Forged Steel Flanges are available in various sizes to suit different project requirements.Q: What is the manufacturing process used for these flanges?
A: The flanges are manufactured using hot-rolled techniques for optimal structural integrity.Q: Are there different grades of the ASTM A105 Forged Steel Flanges?
A: Yes, the product is available in multiple grades to cater to diverse industrial needs.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Carbon Steel Flanges Category
ASTM A350 Lf2 Flanges
Technics : Other, Forged
Size : 1/2 Inch to 48 Inch
Surface : Other, Rust Proof Oil Coated
Grade : LF2
Material : Carbon Steel
Standard : Other, ASTM A350 Lf2
ASTM A181 Flanges
Technics : Other, Forged
Size : Customizable
Surface : Other, Rust Proof
Grade : Class 60, Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, Class 2500
Material : Carbon Steel
Standard : Other, ASTM A181
ASTM A694 Flanges
Technics : Other, Forged
Size : 1/2 to 48 (DN15 to DN1200)
Surface : Other, Black or Galvanized or Antirust Oil Coating
Grade : F42, F46, F48, F50, F52, F56, F60, F65, F70
Material : Carbon Steel
Standard : Other, ASTM A694

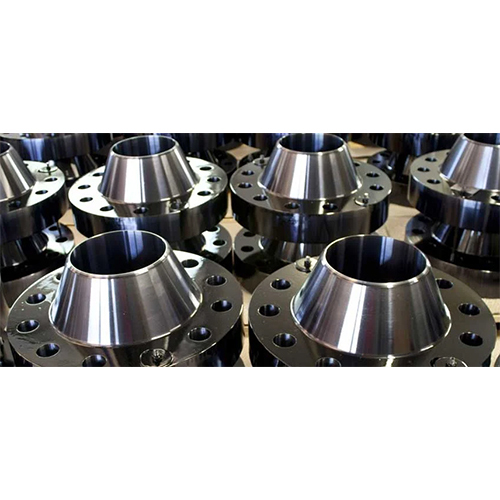

Carbon Steel Round Flanges
Technics : Hot Rolled
Size : Various Sizes Available
Surface : Galvanized
Grade : Multple Grades Available
Material : Stainless Steel
Standard : ANSI
